Attendance with an NFC phone, QR code, RFID card or PIN.
Check in with an NFC phone, QR code, RFID card or PIN. It uses no biometrics. Its built-in camera is used solely to read QR codes. With a backup battery, it keeps running and storing attendance records during a power cut.
LEM 1009QR Code, NFC, RFID & PIN Time Attendance and Access Control
What this one is good at
Four check-in methods, no biometrics
QR, NFC phone, RFID card and PIN. The camera reads the QR code and is not used for face recognition.
The phone is the credential
A QR code on a screen works, and so does tapping an NFC phone. Staff who lose cards stop losing cards, and a new starter can be working before a card is printed.
Temporary and dynamic QR codes
It reads card, visitor and server QR codes, including temporary and dynamically generated codes. It also supports QR, Micro QR, PDF417, Code 128 and Code 39 formats.
100,000 of everything
A hundred thousand users, a hundred thousand cards, a hundred thousand passwords, and a million events in the local log. This is not a terminal you outgrow.
165 × 80 mm
Narrow enough for a door frame or a turnstile post, where a square face terminal will not go. Four-inch colour screen on the front of it.
HID as an option
HID PROX and iCLASS are available, which matters if the building already runs HID and you would rather not reissue every card in it.
Mounting options
One stand range for every Attendance terminal.
Choose a counter stand, a fixed-height floor stand or an adjustable model for the point of installation. Each option accepts every terminal named below, so the terminal can change without replacing the stand.
CountertopDesk or reception counterCounter stand
A compact metal stand for a reception desk, counter or other surface where a floor stand is unnecessary.
60 cmCompact heightFixed stand
A fixed, lower-height option for an installation that does not need adjustment.
110 cmFull heightFixed stand
A full-height fixed stand for a permanent staff entrance or exit point.
Up to 120 cmAdjustable heightTelescopic stand
Adjust the height up to 120 cm when the installation needs more flexibility.
With Attendance
The door happens, and it is in the software.
This is not a terminal you buy and then find an export routine for. It is integrated with Attendance at attendance.cy, and a punch at this door is in the live view before the person has finished walking through it.
Real time, not a poll interval
The gateway holds an open stream and pushes every event the instant it happens. No refresh, no five-minute wait, no "last synced at". Somebody checks in and the board has them.
Three layers, so nothing is lost
The push is the fast path. Behind it Attendance polls on a watermark with a five-minute overlap, and behind that the terminal keeps its own log: up to a million events. Cut the network for a week and every punch still arrives, carrying the time it was made.
Straight into hours, not a spreadsheet
The punch becomes a shift, the shift becomes hours, and the hours become an approved payroll batch: in one record, with the corrections attached to it. Nothing is re-keyed and nothing is reconciled by memory at the end of the month.
You can see the terminal itself
Online or not, when it was last seen, and whether collection is current or overdue: per unit, in the portal. A terminal that quietly stops reporting is visible the same day rather than when somebody queries a missing shift.
Right for
- Teams that use phones, cards, QR codes or PINs instead of biometrics
- Entrances that benefit from a four-inch touch screen
- Sites that issue temporary QR codes to contractors and visitors
- Buildings that already use HID PROX or iCLASS cards
Not right for
A door where people arrive with full hands. Everything here needs a deliberate action (a tap, a scan, a PIN), so if the point is not touching anything, the LEM Ai2 is the one.
Every angle

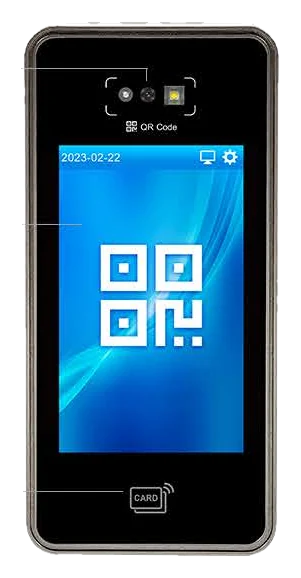

Front: 4″ colour screen
Three-quarter view

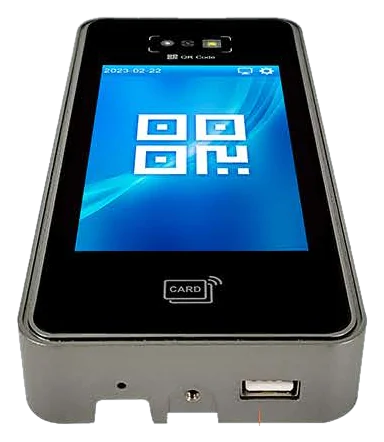

Base and USB port

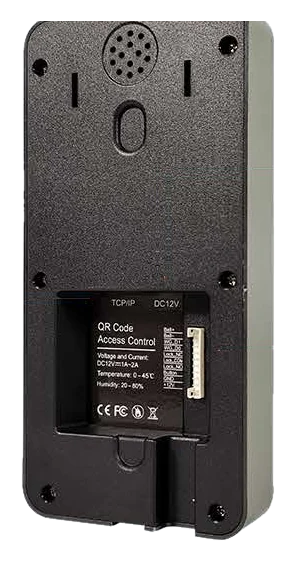

Rear: terminal block and USB
Buying
- Delivery and installation
- Free anywhere in Cyprus: we deliver it, mount it and connect it. Outside Cyprus, delivery is quoted per order and the terminal arrives set up, ready for you to mount.
- 24-month warranty
- If it stops working as it should, we replace it.
- Rent to own
- Pay monthly instead of up front. After 24 months the terminal is yours. Ask us for the monthly rate.
- Software
- Sold separately. The price depends on the features you use and how many people you have. Ask us.
Specifications
Verification
- Methods
- QR code, NFC, RFID card, password
- RFID and NFC
- RFID reader, NFC reader or both We can add an RFID reader, an NFC reader or both to every model.
- QR use
- Card, visitor, temporary, dynamic and server QR codes
- Supported code formats
- QR, Micro QR, PDF417, Code 128 and Code 39
- Card options
- RFID and NFC; HID PROX and iCLASS optional
Capacity
- Users
- 100,000
- Cards and QR codes
- 100,000
- Passwords
- 100,000
- Stored events
- 1,000,000
Hardware
- Screen
- 4″ colour screen
- Dimensions
- 165 × 80 × 25 mm
- Processor
- ARM Cortex-A7 800MHz, 0.8T NPU
- Memory
- 256MB DDR3 / 4GB eMMC
- Operating system
- Linux 4.19
- Audio
- Built-in speaker with voice prompts
Doors and wiring
- Lock relay
- NC, COM and NO outputs
- Exit button input
- Yes
- Doorbell
- Output, and an external ring
- Wiegand
- 26/34-bit input and output
Power and network
- Power over Ethernet
- Supported One cable to the door: data and power on the same run, with no socket needed beside the frame. Confirmed by the manufacturer: the datasheets in circulation predate it and list only the DC supply.
- Backup battery
- Available The terminal keeps reading and keeps recording through a power cut, so the punches either side of it are still one shift. Confirmed by the manufacturer: this model's datasheet does not carry the row.
- DC power
- DC 12V 2A For a run with no PoE at the other end of it.
- Network
- Ethernet (TCP/IP), Wi-Fi optional, USB type-A
- Data transfer
- USB 2.0 host: import and export by USB stick
Attendance integration
- Live updates
- Real time, pushed The gateway holds an open stream and sends each punch the moment it happens. Somebody walks through the door and the live view has them, without a refresh and without a poll interval to wait out.
- If the network drops
- Nothing is lost The terminal keeps its own log, and Attendance polls the gateway on a watermark with a five-minute overlap. Reconnect and every punch made in the gap is imported, with its original time, not the time it arrived.
- Duplicate protection
- One punch, once The same event arriving by both push and poll is recognised as one punch, not two.
- Device health
- Online, last seen, collection state Shown per terminal in the portal, so a unit that has quietly stopped reporting is visible before somebody notices a missing shift.
- Verification status
- Integrated The model connects to Attendance for clock-in and clock-out, employee matching and synchronisation after a connection interruption.
- Firmware
- Runs custom Lemorange Attendance firmware
Environment
- Working temperature
- 0°C to +45°C
- Working humidity
- 20%-90%
- Languages
- 20, with voice prompts The manufacturer lists English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese and Korean among them.
The other models
LEM Ai10
LEM Ai8 Pro
LEM Ai8
LEM Ai3
LEM Ai2
LEM 1008The terminal is the part you can change your mind about.
Every one of these writes into the same record, so a site can run two models on two doors, or replace one in three years, without anything downstream noticing. What you are choosing here is how people get through a particular door, not a platform.
Talk about your doors
