Built for the gate, with a reception screen.
An 8-inch portrait face-recognition terminal for gates, turnstiles and doors. Two cameras check the person in front of it, the way opens and the clock-in is recorded, and the reception screen takes visitors and calls the front desk.

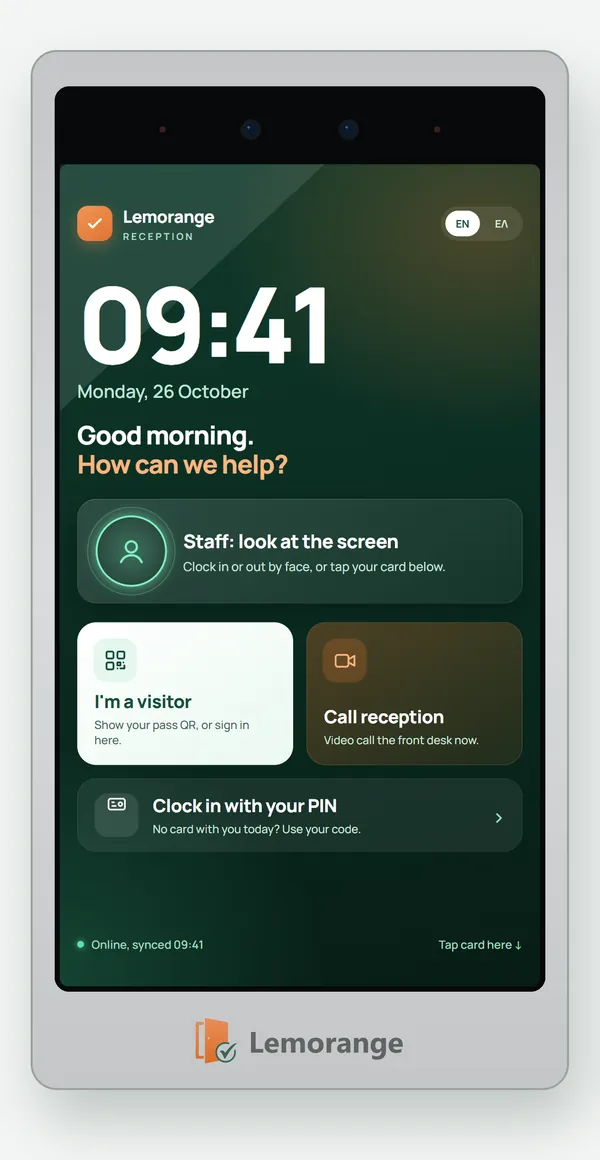

LEM Gate 8Face Recognition Access and Attendance Terminal, 8″
What this one is good at
An 8″ portrait screen
1280×800 on toughened capacitive glass, showing the name of the person recognised and your reception menu.
Real faces only
Binocular 3D liveness refuses photographs and video. Verification rate of at least 99.9% with a false acceptance rate of 0.01% or lower.
Up to five people at once
Multi-person mode recognises up to five people in the frame, from 50 to 150 cm, masks included.
Made for gates and turnstiles
Relay output, Wiegand in and out, RS485 and RS232, with wall and turnstile brackets.
Video intercom
Call your reception or an indoor unit from the same terminal.
Speaks English and Greek
Spoken prompts with the person's name, in English and Greek.
A photo at every clock-in and clock-out
Kept with the punch and shown in Attendance.
With Attendance
The door happens, and it is in the software.
This is not a terminal you buy and then find an export routine for. It is integrated with Attendance at attendance.cy, and a punch at this door is in the live view before the person has finished walking through it.
Real time, not a poll interval
The gateway holds an open stream and pushes every event the instant it happens. No refresh, no five-minute wait, no "last synced at". Somebody clocks in and the board has them.
Three layers, so nothing is lost
The push is the fast path. Behind it Attendance polls on a watermark with a five-minute overlap, and behind that the terminal keeps its own log: up to a million events. Cut the network for a week and every punch still arrives, carrying the time it was made.
Straight into hours, not a spreadsheet
The punch becomes a shift, the shift becomes hours, and the hours become an approved payroll batch: in one record, with the corrections attached to it. Nothing is re-keyed and nothing is reconciled by memory at the end of the month.
You can see the terminal itself
Online or not, when it was last seen, and whether collection is current or overdue: per unit, in the portal. A terminal that quietly stops reporting is visible the same day rather than when somebody queries a missing shift.
Right for
- Gates, speed gates and turnstiles that check every person
- A reception or lobby where staff and visitors use the same screen
- Sites that wire to an existing controller by relay, Wiegand or RS485
Not right for
An exposed outdoor position: it has no weather rating, so the LEM Ai8 Pro is the waterproof one. It reads face, QR code and card, with no fingerprint reader.
Buying
- Delivery and installation
- Free anywhere in Cyprus: we deliver it, mount it and connect it. Outside Cyprus, delivery is quoted per order and the terminal arrives set up, ready for you to mount.
- 24-month warranty
- If it stops working as it should, we replace it.
- Rent to own
- Pay monthly instead of up front. After 24 months the terminal is yours. Ask us for the monthly rate.
- Software
- Sold separately. The price depends on the features you use and how many people you have. Ask us.
Face recognition for everyday attendance is restricted in Cyprus. The LEM Gate 8 also reads a QR code or an IC card, so the same terminal runs without biometrics. When biometric attendance is allowed in Cyprus
Specifications
Recognition
- Methods
- Face, QR code, IC card, RFID card, NFC, Wiegand readers
- RFID and NFC
- RFID reader, NFC reader or both We can add an RFID reader, an NFC reader or both to every model.
- Verification rate
- ≥99.9%
- False acceptance rate
- ≤0.01%
- Simultaneous faces
- Up to 5 Multi-person mode.
- Recognition distance
- 50-150 cm
- Cameras
- Dual 2MP wide-dynamic: colour and infrared
- Anti-spoofing
- Binocular 3D liveness Refuses photographs and video.
- Mask recognition
- Recognises a face wearing a mask
- Clock-in photo
- Taken at every clock-in and clock-out Kept with the punch and shown in Attendance.
- Lighting
- Infrared and white fill light
- Card
- IC card; built-in reader optional
- Voice
- Spoken prompts with the person's name, in English and Greek
- Video intercom
- With our reception or indoor unit
Capacity
- Users
- 20,000
- Stored events
- 1,000,000 The terminal itself holds up to 20,000 photos.
Hardware
- Screen
- 8″ HD, 1280×800 portrait, capacitive toughened glass
- Processor
- Quad-core 1.8GHz with neural processing
- Operating system
- Android 11
- Housing
- Aluminium alloy
- Dimensions
- 132 × 255 × 27 mm
- Mounting
- Wall bracket or turnstile bracket
Doors and wiring
- Door output
- Relay × 1
- Wiegand
- Input and output, WG26/34
- External reader
- Wiegand reader input
- Serial ports
- RS485 × 2, RS232 × 1
Power and network
- DC power
- 12V 2A
- Network
- Ethernet 10/100
- Wireless
- Wi-Fi 2.4/5GHz and Bluetooth 4.2, optional; 4G and GPS, optional
- Data transfer
- USB host: import and export by USB stick
- Memory card
- TF card, optional
Attendance integration
- Live updates
- Real time, pushed The gateway holds an open stream and sends each punch the moment it happens. Somebody walks through the door and the live view has them, without a refresh and without a poll interval to wait out.
- If the network drops
- Nothing is lost The terminal keeps its own log, and Attendance polls the gateway on a watermark with a five-minute overlap. Reconnect and every punch made in the gap is imported, with its original time, not the time it arrived.
- Duplicate protection
- One punch, once The same event arriving by both push and poll is recognised as one punch, not two.
- Device health
- Online, last seen, collection state Shown per terminal in the portal, so a unit that has quietly stopped reporting is visible before somebody notices a missing shift.
- Verification status
- Integrated The model connects to Attendance for clock-in and clock-out, employee matching and synchronisation after a connection interruption.
- Firmware
- Runs custom Lemorange Attendance firmware
Environment
- Working temperature
- -15°C to +60°C
- Working humidity
- Under 90%
The other models

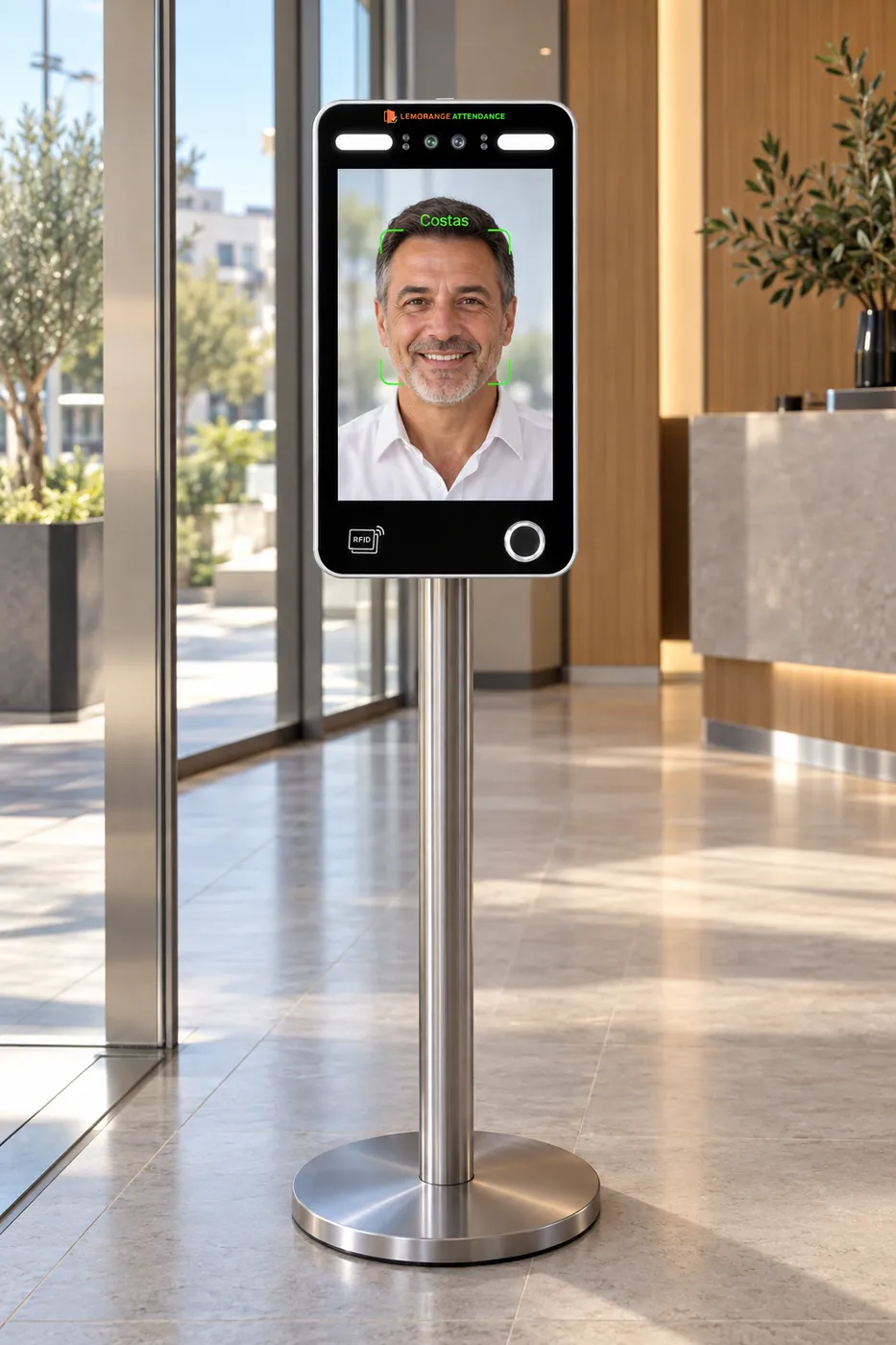

LEM Ai10
LEM Ai8 Pro
LEM Ai8
LEM Ai3
LEM Ai2
LEM 1009
LEM 1008The terminal is the part you can change your mind about.
Every one of these writes into the same record, so a site can run two models on two doors, or replace one in three years, without anything downstream noticing. What you are choosing here is how people get through a particular door, not a platform.
Talk about your doors
